Tugs And Cranes

​Ocean-going multipurpose tugs "Baraka1 & Ezzat Adel"​​

​​

1. The most powerful in the Middle East with continuous bollard pull rated 160 tons  and speed : 17.5 knot.

2. Length : 69.2 m, Beam :15.5 m, Depth : 7.4 m, and Draught : 6.4 m.

3. Total dead weight capacity : 2320 tons , Deck area : 434 m2 with a strength of 15 t/m2.

4. Four diesel engines :each 3990 HP at 600 rpm, Marine range : 6000 nautical miles.

5. Equipped with two fire fighting pumps delivering 3600 m3/hr for each and two water monitors remotely controlled from the wheel house ( 150 m height above sea level and 193 m trajectory ).

6. Equipped with a 200 m3 tank, so they can participate in antipollution and lightering operations.

7. They carried out many successful towing operations in the high sea for oil rigs, floating docks, ships, barges and oil derricks.​


Lightering vessels "Nagda1 and Nagda2"

​

1. These vessels are used for lightering, bunkering water supply and carrying containers.

2. Oil carrying capacity : 3045 tons and fresh water capacity : 1000 tons.

3. Length : 87 m, Beam : 15.5 m and Depth : 4 m.

4. Container carrying capacity : 56 TEU.

5. Two engines each 1125 HP at 1000 rpm and speed : 10 knot.​​


Salvage and fire fighting "Salam 5 ,6 ,7 ,8 & 9" ​

1. Modern, newly built and fully equipped tug.

2. Used for salvage, fire fighting, mooring and escorting of large tankers and other services.

3. The tug is highly maneuverable for operation in harbours and escorting

4. Equipped with 2*2500 HP diesel engine and Voith-Schnider propeller.​
   ​

Open sea towage, escort and fire fighting "Mosaed1"

• ​Newly built on 2010 with bollard pull 70 tons and speed 13.4 knots.

• Length :30.25m ,Beam :11.75m ,Depth :5.28m ,Draught :5.84(including Skeg and thruster).

• Equiped with two main engines 2720HP eath at 1600 rpm .

• Equiped with two fire fighting pumps each delivering 1400 m3/hr at 12.5 bar.

• Used for towing ,escorting ,fire fighting and berthing ships.​


Other Tugs

• The other tugs are used as salvage, escort and fire fighting at the Suez Canal.

• They are also used for berthing ships at the waiting areas and harbours.​


Suez Canal Tugs Fleet

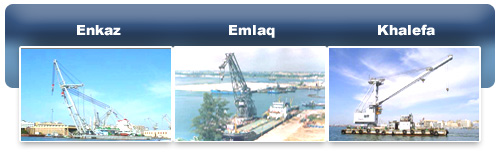

1. Port Said Shipyard Cranes:

​​

​

​​​Main specifications	​Enkaz I​I​​	​Emlak​	​​Bahgat Badawi	​​Khalifa​​
​​Max. Lifting Capacity (Ton)	​​500	​200	100​	​​40
​Max. Lifting Height (m)	​​60	​33	40​	​18
​Outreach :​
​Main Hook (m)	​15	​8.8	​10	​15.5
​Aux. Hook (m)​	​​40	​28.8	30​​​	​32

3. Dredging Department Cranes:​

​​​Main specifications​	​Shamekh​
​Load capacity(Ton)	​80
Main engine (HP)	​2 x 635  1 x 122
