Page 106 - Rules of Navigation2020

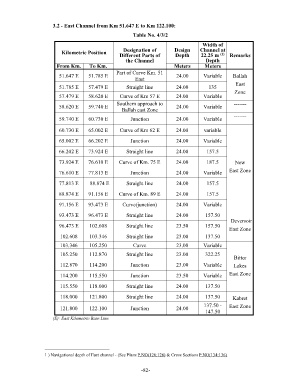

3.2 - East Channel from Km 51.647 E to Km 122.100:
Table No. 4/3/2

Width of
Kilometric Position Designation of Design Channel at
(1)
Different Parts of Depth 22.25 m Remarks
the Channel Depth
From Km. To Km. Meters Meters
Part of Curve Km. 51
51.647 E 51.785 E 24.00 Variable Ballah
East
East
51.785 E 57.479 E Straight line 24.00 135
Zone
57.479 E 58.620 E Curve of Km 57 E 24.00 Variable
Southern approach to -------
58.620 E 59.740 E 24.00 Variable
Ballah east Zone
-------
59.740 E 60.730 E Junction 24.00 Variable
60.730 E 65.002 E Curve of Km 62 E 24.00 variable

65.002 E 66.202 E Junction 24.00 Variable

66.202 E 73.924 E Straight line 24.00 157.5
73.924 E 76.610 E Curve of Km. 75 E 24.00 187.5 New

76.610 E 77.813 E Junction 24.00 Variable East Zone

77.813 E 088.874 E Straight line 24.00 157.5

88.874 E 91.156 E Curve of Km. 89 E 24.00 157.5
91.156 E 93.473 E Curve(junction) 24.00 Variable

93.473 E 96.473 E Straight line 24.00 157.50
Deversoir
96.473 E 102.608 Straight line 23.50 157.50
East Zone
102.608 103.346 Straight line 23.00 137.50
103.346 105.250 Curve 23.00 Variable

105.250 112.870 Straight line 23.00 322.25
Bitter
112.870 114.200 Junction 23.00 Variable Lakes

114.200 115.550 Junction 23.50 Variable East Zone

115.550 118.000 Straight line 24.00 137.50
118.000 121.800 Straight line 24.00 137.50 Kabret

137.50 - East Zone
121.800 122.100 Junction 24.00
147.50
(E): East Kilometric Base Line.

1 ) Navigational depth of East channel - (See Plans P.NO(120:126) & Cross Sections P.NO(134:136)

- 82 -
