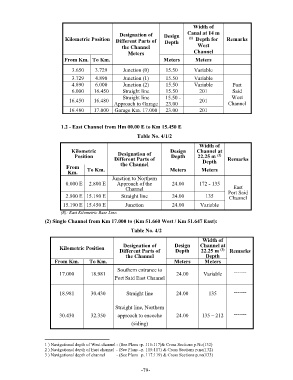

P. 103

Width of
                                                   Designation of    Design    Canal at 14 m
                            Kilometric Position   Different Parts of   Depth    (1)   Depth for   Remarks

                                                    the Channel                     West
                                                      Meters                      Channel
                            From Km.  To Km.                         Meters        Meters

                              03.650     3.729      Junction (0)      15.50       Variable
                              03.729     4.890      Junction (1)      15.50       Variable
                              04.890     6.000      Junction (2)      15.50       Variable        Port
                              06.000    16.450      Straight line     15.50         201           Said
                                                    Straight line    015.50 -                     West
                              16.450    16.480                                      201
                                                 Approach to Garage   23.00                     Channel
                              16.480    17.000  Garage Km. 17.000     23.00         201

                          1.2 - East Channel from Hm 00.00 E to Km 15.450 E

                                                          Table No. 4/1/2
                                                                                    Width of
                               Kilometric         Designation of        Design     Channel at
                                Position         Different Parts of     Depth       22.25 m     Remarks
                                                                                            (2)
                                                   the Channel                        Depth
                             From
                             Km.     To Km.                             Meters       Meters
                                                Junction to Northern
                           00.000 E  02.800 E     Approach of the        24.00      172 - 135
                                                     Channel                                      East
                           02.800 E  15.190 E       Straight line        24.00         135      Port Said
                                                                                                 Channel
                           15.190 E  15.450 E        Junction            24.00       Variable
                          (E): East Kilometric Base Line.

                    (2) Single Channel from Km 17.000 to (Km 51.660 West / Km 51.647 East):
                                                        Table No. 4/2

                                                                                      Width of
                                                    Designation of        Design     Channel at
                          Kilometric Position
                                                                                             (3)
                                                   Different Parts of     Depth      22.25 m    Remarks
                                                      the Channel                      Depth
                        From Km.      To Km.                              Meters      Meters
                                                  Southern entrance to
                          17.000       18.981                              24.00      Variable       -------
                                                 Port Said East Channel


                          18.981       30.430         Straight line        24.00        135          -------

                                                 Straight line, Northern
                          30.430       32.350     approach to encoche      24.00     135 – 212       -------

                                                        (siding)



                    1 ) Navigational depth of West channel - (See Plans -p. 115:117)& Cross Sections p.No(132)
                    2 ) Navigational depth of East channel  - (See Plans –p. 115:117) & Cross Sections p.no(132)
                    3 ) Navigational depth of channel          - (See Plans –p. 117:119) & Cross Sections p.no(133)


                                                            - 79    -
