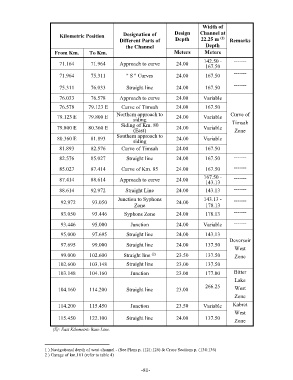

Page 105 - Rules of Navigation2020

Width of

Kilometric Position Designation of Design Channel at
(1)
Different Parts of Depth 22.25 m Remarks
the Channel Depth
From Km. To Km. Meters Meters
142.50 - -------
71.164 71.964 Approach to curve 24.00 167.50

71.964 75.311 " S " Curves 24.00 167.50 -------

75.311 76.033 Straight line 24.00 167.50 -------

76.033 76.578 Approach to curve 24.00 Variable
76.578 79.123 E Curve of Timsah 24.00 167.50

79.123 E 79.800 E Northern approach to 24.00 Variable Curve of
siding
Siding of Km. 80 Timsah
79.800 E 80.360 E 24.00 Variable
(East) Zone
Southern approach to
80.360 E 81.893 siding 24.00 Variable
81.893 82.576 Curve of Timsah 24.00 167.50
82.576 85.027 Straight line 24.00 167.50 -------

85.027 87.414 Curve of Km. 85 24.00 167.50 -------

87.414 88.614 Approach to curve 24.00 167.50 - -------
143.13
88.614 92.972 Straight Line 24.00 143.13 -------
Junction to Syphons 143.13 -
092.972 093.050 24.00 -------
Zone 178.13
093.050 093.446 Syphons Zone 24.00 178.13 -------

093.446 095.000 Junction 24.00 Variable -------
095.000 097.695 Straight line 24.00 143.13
Deversoir
097.695 099.000 Straight line 24.00 137.50
West
099.000 102.600 Straight line (2) 23.50 137.50 Zone
102.600 103.148 Straight line 23.00 137.50
103.148 104.160 Junction 23.00 177.00 Bitter
Lake
266.25
104.160 114.200 Straight line 23.00 West

Zone
114.200 115.450 Junction 23.50 Variable Kabret
West
115.450 122.100 Straight line 24.00 137.50 Zone

(E): East Kilometric Base Line.

1 ) Navigational depth of west channel - (See Plans p. (121:126) & Cross Sections p. (134:136)
2 ) Garage of km.101 (refer to table 4)

- 81 -
