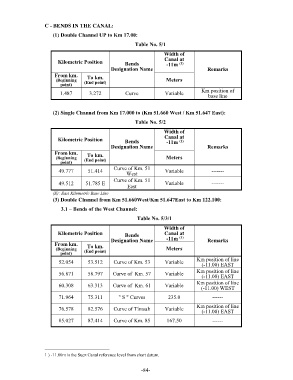

P. 108

C - BENDS IN THE CANAL:
                       (1) Double Channel UP to Km 17.00:

                                                         Table No. 5/1
                                                                      Width of
                                                                      Canal at
                         Kilometric Position         Bends             -11m  (1)
                                               Designation Name                         Remarks
                        From km.     To km.
                        (Beginning   (End point)                      Meters
                          point)

                          1.487       3.272          Curve            Variable       Km position of
                                                                                        base line


                       (2) Single Channel from Km 17.000 to (Km 51.660 West / Km 51.647 East):
                                                         Table No. 5/2

                                                                      Width of
                                                                      Canal at
                         Kilometric Position         Bends             -11m  (1)
                                               Designation Name                         Remarks
                        From km.     To km.
                        (Beginning   (End point)                      Meters
                          point)
                                                Curve of Km. 51
                          49.777      51.414                          Variable           -------
                                                      West
                                                Curve of Km. 51
                          49.512     51.785 E                         Variable           -------
                                                      East
                       (E): East Kilometric Base Line
                       (3) Double Channel from Km 51.660West/Km 51.647East to Km 122.100:

                          3.1 – Bends of the West Channel:
                                                          Table No. 5/3/1

                                                                      Width of
                         Kilometric Position         Bends            Canal at
                                               Designation Name        -11m  (1)        Remarks
                        From km.     To km.
                        (Beginning   (End point)                      Meters
                          point)
                                                                                   Km position of line
                          52.054      53.512    Curve of Km. 53       Variable       (-11.00) EAST
                          56.871      58.797    Curve of  Km. 57      Variable     Km position of line
                                                                                     (-11.00) EAST
                                                                                   Km position of line
                          60.308      63.313    Curve of  Km. 61      Variable       (-11.00) WEST

                          71.964      75.311       " S " Curves        235.0              ------

                          76.578      82.576    Curve of Timsah       Variable     Km position of line
                                                                                     (-11.00) EAST
                          85.027      87.414    Curve of Km. 85        167.50             ------





                    1 ) -11.00m is the Suez Canal reference level from chart datum.


                                                            - 84    -
