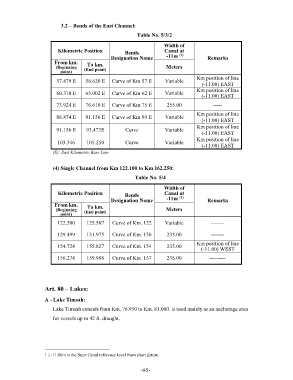

3.2 – Bends of the East Channel:
                                                          Table No. 5/3/2

                                                                      Width of
                         Kilometric Position         Bends            Canal at
                                               Designation Name        -11m  (1)        Remarks
                        From km.     To km.
                        (Beginning   (End point)                      Meters
                          point)
                                                                                   Km position of line
                         57.479 E    58.620 E   Curve of Km 57 E      Variable
                                                                                     (-11.00) EAST
                                                                                   Km position of line
                         60.370 E    65.002 E   Curve of Km 62 E      Variable
                                                                                     (-11.00) EAST
                         73.924 E    76.610 E   Curve of Km 75 E       255.00             -----

                                                                                   Km position of line
                         88.874 E    91.156 E   Curve of Km 89 E      Variable
                                                                                     (-11.00) EAST
                                                                                   Km position of line
                         91.156 E    93.473E         Curve            Variable
                                                                                     (-11.00) EAST
                                                                                   Km position of line
                         103.346     105.250         Curve            Variable
                                                                                     (-11.00) EAST
                       (E): East Kilometric Base Line

                       (4) Single Channel from Km 122.100 to Km 162.250:

                                                         Table No. 5/4
                                                                      Width of
                         Kilometric Position         Bends            Canal at
                                               Designation Name        -11m  (1)        Remarks
                        From km.     To km.
                        (Beginning   (End point)                      Meters
                          point)
                         122.500     125.507    Curve of Km. 122      Variable           -------

                         129.499     131.975    Curve of Km. 130       235.00            -------

                                                                                   Km position of line
                         154.724     155.827    Curve of Km. 154       235.00
                                                                                     (-11.00) WEST
                         156.274     159.998    Curve of Km. 157       235.00            ---------




                    Art. 80 – Lakes:


                    A - Lake Timsah:
                       Lake Timsah extends from Km. 76.950 to Km. 81.000. is used mainly as an anchorage area
                       for vessels up to 42 ft. draught.





                    1 ) -11.00m is the Suez Canal reference level from chart datum.
