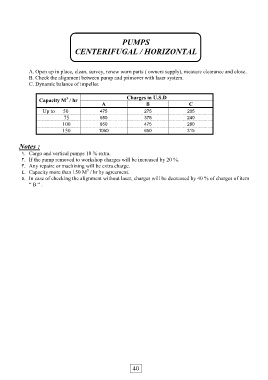

PUMPS

                                  CENTERIFUGAL / HORIZONTAL


              A. Open up in place, clean, survey, renew worn parts ( owners supply), measure clearance and close.
              B. Check the alignment between pump and primover with laser system.
              C. Dynamic balance of impeller.


                              3
                  Capacity M  / hr                       Charges in U.S.D
                                              A                   B                  C
                     Up to      50           475                 275                205
                             75              650                 375                240
                             100             850                 475                280
                             150             1050                650                315

          Notes :
           ١.  Cargo and vertical pumps 10 % extra.
           ٢.  If the pump removed to workshop charges will be increased by 20 %.
           ٣.  Any repaire or machining will be extra charge.
                                        3
           ٤.  Capacity more than 150 M  / hr by agreement.
           ٥.  In case of checking the alignment without laser, charges will be decreased by 40 % of charges of item
              “ B “ .
