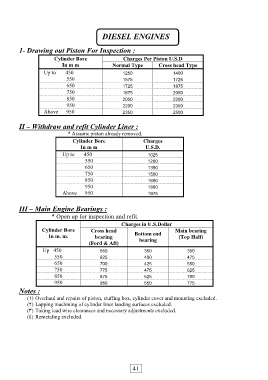

DIESEL ENGINES


          1- Drawing out Piston For Inspection :

                         Cylinder Bore                  Charges Per Piston U.S.D
                             In m m                Normal Type         Cross head Type
                     Up to       450                    1250                  1400
                               550                      1575                  1725
                               650                      1725                  1875
                               750                      1875                  2050
                               850                      2050                  2200
                               950                      2200                  2350
                     Above      950                     2350                  2500

          II – Withdraw and refit Cylinder Liner :
                               * Assume piston already removed.
                                 Cylinder Bore                   Charges
                                     In m m                       U.S.D.
                              Up to       450                      1025
                                       550                         1200
                                       650                         1350
                                       750                         1500
                                       850                         1650
                                       950                         1800
                              Above      950                       1975

          III – Main Engine Bearings :
                        * Open up for inspection and refit.

                                                       Charges in U.S.Dollar
                    Cylinder Bore        Cross head                            Main bearing
                       In m. m.            bearing           Bottom end         (Top Half)
                                         (Ford & Aft)          bearing
                     Up   450                550                 350                350
                         550                 625                 400                475
                         650                 700                 425                550
                         750                 775                 475                625
                         850                 875                 525                700
                         950                 950                 550                775
          Notes :
             (١) Overhaul and repairs of piston, stuffing box, cylinder cover and mounting excluded.
             (٢) Lapping machining of cylinder liner landing surfaces excluded.
             (٣) Taking lead wire clearances and necessary adjustments excluded.
             (٤) Remetaling excluded.
