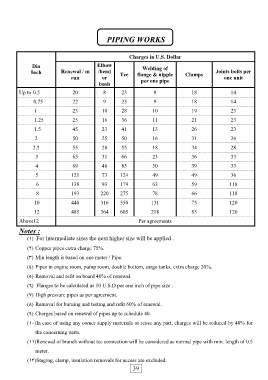

PIPING WORKS


                                                          Charges in U.S. Dollar

               Dia                          Elbow               Welding of
               Inch         Renewal / m      /bend    Tee     flange & nipple      Clamps        Joints bolts per
                                 run          or                                                     one unit
                                                                per one pipe
                                             bush
          Up to  0.5             20            8       23            8                18               14

                 0.75            22            9       25            9                18               14
                     1           23           10       28            10               19               23

                  1.25           25           16       36            11               21               23
                 1.5             45           23       41            13               26               23

                 2               50           25       50            16               31               26
                2.5              55           28       55            18               34               28

                 3               65           31       66            23               36               33
                 4               69           48       83            30               39               33

                 5               121          73      124            49               49               36
                  6              138          93      179            63               59               118

                  8              193          220     275            78               66               118

                 10              440          316     550           131               75               120
                 12              485          364     605           218               83               120

          Above12                                              Per agreements
          Notes :

             (١)  For intermediate sizes the next higher size will be applied .
             (٢) Copper pipes extra charge 75%.

             (٣) Min length is based on one meter / Pipe.
             (٤) Pipes in engine room, pump room, double bottom, cargo tanks, extra charge 20%.

             (٥) Removal and refit on board 40% of renewal.
             (٦)  Flanges to be calculated as 10 U.S.D per one inch of pipe size .

             (٧) High pressure pipes as per agreement.

             (٨) Removal for burning and testing and refit 60% of renewal.
             (٩) Charges based on renewal of pipes up to schedule 40.

             (١٠) In case of using any owner supply materials or reuse any part, charges will be reduced by 40% for

                 the concerning parts.
             (١١) Renewal of branch without tee connection will be considered as normal pipe with min. length of 0.5

                 meter.
             (١٢) Staging, clamp, insulation removals for access are excluded.
