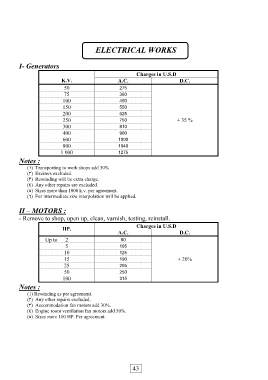

ELECTRICAL WORKS


          I- Generators
                                                              Charges in U.S.D
                            K.V.                     A.C.                        D.C.
                             50                       275
                             75                       360
                             100                      450
                             150                      550
                             200                      625
                             250                      750                       + 35 %
                             300                      810
                             400                      900
                             600                      1000
                             800                      1040
                            1 000                     1275
          Notes :
             (١)  Transporting to work shops add 30%
             (٢)  Exciters excluded.
             (٣)  Rewinding will be extra charge.
             (٤)  Any other repairs are excluded.
             (٥)  Sizes more than 1000 k.v. per agreement.
             (٦)  For intermediate size interpolation will be applied.

          II – MOTORS :
          - Remove to shop, open up, clean, varnish, testing, reinstall.
                                                              Charges in U.S.D
                             HP.
                                                     A.C.                        D.C.
                      Up to      2                     80
                              5                       105
                             10                       125
                             15                       190                       + 20%
                             25                       205
                             50                       250
                             100                      315

          Notes :
             (1) Rewinding as per agreement.
             (٢)  Any other repairs excluded.
             (٣)  Accommodation fan motors add 30%.
             (٤)  Engine room ventilation fan motors add 50%.
             (٥)  Sizes more 100 HP. Per agreement.
