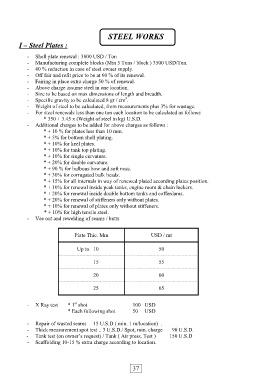

STEEL WORKS

          I – Steel Plates :

             -  Shell plate renewal : 3800 USD / Ton
             -  Manufacturing complete blocks (Min 5 Tons / block ) 3500 USD/Ton.
             -  40 % reduction in case of steel owner supply.
             -  Off fair and refit price to be at 60 % of its renewal.
             -  Fairing in place extra charge 50 % of renewal.
             -  Above charge assume steel in one location.
             -  Size to be based on max dimensions of length and breadth.
                                                         3
             -  Specific gravity to be calculated 8 gr / cm .
             -  Weight of steel to be calculated, from measurements plus 3% for wastage.
             -  For steel renewals less than one ton each location to be calculated as follows
                    * 350 + 3.45 x (Weight of steel in kg) U.S.D.
             -  Additional charges to be added for above charges as follows :
                    * + 10 % for plates less than 10 mm.
                    * + 5% for bottom shell plating.
                    * + 10% for keel plates.
                     * + 10% for tank top plating.
                     * + 10% for single curvature.
                     * + 20% for double curvature.
                     * + 90 % for bulbous bow and soft nose.
                     * + 30% for corrugated bulk heads.
                     * + 15% for all internals in way of renewed plated according plates position.
                     * + 10% for renewal inside peak tanks, engine room & chain lockers.
                     * + 20% for renewal inside double bottom tanks and cofferdams.
                    * + 20% for renewal of stiffeners only without plates.
                    * + 10% for renewal of plates only without stiffeners.
                     * + 10% for high tensile steel.
             -  Vee out and rewelding of seams / butts


                                  Plate Thic. Mm                    USD / mt

                                   Up to   10                           50


                                          15                            55


                                          20                            60

                                          25                            65


                                  st
             -  X Ray test     * 1  shot                    100   USD
                               * Each following shot        50     USD

             -  Repair of wasted seams     15 U.S.D ( min. 1 m/location)  .
             -  Thick measurement spot test .. 3 U.S.D./ Spot, min. charge       90 U.S.D.
             -   Tank test (on owner’s request) / Tank ( Air press. Test )          150 U.S.D
             -  Scaffolding 10-15 % extra charge according to location.
