Page 80 - Rules of Navigation2020

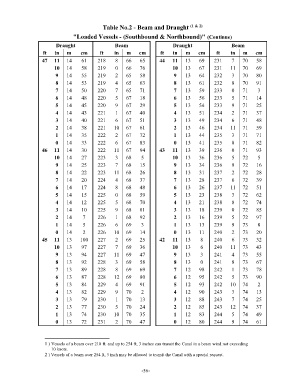

Table No.2 - Beam and Draught (1 & 2)

"Loaded Vessels - (Southbound & Northbound)" (Continue)
Draught Beam Draught Beam
ft in m cm ft in m cm ft in m cm ft in m cm
47 11 14 61 218 8 66 65 44 11 13 69 231 7 70 58
10 14 58 219 0 66 76 10 13 67 231 11 70 69
9 14 55 219 2 65 58 9 13 64 232 3 70 80
8 14 53 219 4 65 63 8 13 61 232 8 70 91
7 14 50 220 7 65 71 7 13 59 233 0 71 3
6 14 48 220 5 67 18 6 13 56 233 5 71 14
5 14 45 220 9 67 29 5 13 54 233 9 71 25
4 14 43 221 1 67 40 4 13 51 234 2 71 37
3 14 40 221 6 67 51 3 13 49 234 6 71 48
2 14 38 221 10 67 61 2 13 46 234 11 71 59
1 14 35 222 2 67 72 1 13 44 235 3 71 71
0 14 33 222 6 67 83 0 13 41 235 8 71 82
46 11 14 30 222 11 67 94 43 11 13 39 236 0 71 93
10 14 27 223 3 68 5 10 13 36 236 5 72 5
9 14 25 223 7 68 15 9 13 34 236 9 72 16
8 14 22 223 11 68 26 8 13 31 237 2 72 28
7 14 20 224 4 68 37 7 13 28 237 6 72 39
6 14 17 224 8 68 48 6 13 26 237 11 72 51
5 14 15 225 0 68 59 5 13 23 238 3 72 62
4 14 12 225 5 68 70 4 13 21 238 8 72 74
3 14 10 225 9 68 81 3 13 18 239 0 72 85
2 14 7 226 1 68 92 2 13 16 239 5 72 97
1 14 5 226 6 69 3 1 13 13 239 9 73 8
0 14 2 226 10 69 14 0 13 11 240 2 73 20
45 11 13 100 227 2 69 25 42 11 13 8 240 6 73 32
10 13 97 227 7 69 36 10 13 6 240 11 73 43
9 13 94 227 11 69 47 9 13 3 241 4 73 55
8 13 92 228 3 69 58 8 13 0 241 8 73 67
7 13 89 228 8 69 69 7 12 98 242 1 73 78
6 13 87 228 12 69 80 6 12 95 242 5 73 90
5 13 84 229 4 69 91 5 12 93 242 10 74 2
4 13 82 229 9 70 2 4 12 90 243 3 74 13
3 13 79 230 1 70 13 3 12 88 243 7 74 25
2 13 77 230 5 70 24 2 12 85 243 12 74 37
1 13 74 230 10 70 35 1 12 83 244 5 74 49
0 13 72 231 2 70 47 0 12 80 244 9 74 61

1 ) Vessels of a beam over 210 ft. and up to 254 ft, 3 inches can transit the Canal in a beam wind not exceeding
10 knots.
2 ) Vessels of a beam over 254 ft, 3 inch may be allowed to transit the Canal with a special request.

- 56 -
