Page 79 - Rules of Navigation2020

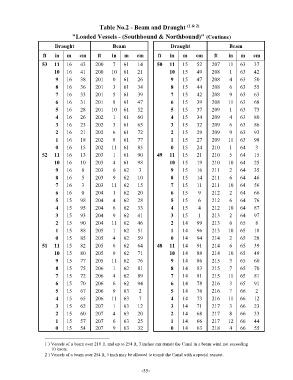

Table No.2 - Beam and Draught (1 & 2)

"Loaded Vessels - (Southbound & Northbound)" (Continue)
Draught Beam Draught Beam

ft in m cm ft in m cm ft in m cm ft in m cm
53 11 16 43 200 7 61 14 50 11 15 52 207 11 63 37
10 16 41 200 10 61 21 10 15 49 208 1 63 42
9 16 38 201 0 61 26 9 15 47 208 4 63 50
8 16 36 201 3 61 34 8 15 44 208 6 63 55
7 16 33 201 5 61 39 7 15 42 208 9 63 63
6 16 31 201 8 61 47 6 15 39 208 11 63 68
5 16 28 201 10 61 52 5 15 37 209 1 63 73
4 16 26 202 1 61 60 4 15 34 209 4 63 80
3 16 23 202 3 61 65 3 15 32 209 6 63 86
2 16 21 202 6 61 72 2 15 29 209 9 63 93
1 16 18 202 8 61 77 1 15 27 209 11 63 98
0 16 15 202 11 61 85 0 15 24 210 1 64 3
52 11 16 13 203 1 61 90 49 11 15 21 210 5 64 15
10 16 10 203 4 61 98 10 15 19 210 10 64 25
9 16 8 203 6 62 3 9 15 16 211 2 64 35
8 16 5 203 9 62 10 8 15 14 211 6 64 46
7 16 3 203 11 62 15 7 15 11 211 10 64 56
6 16 0 204 1 62 20 6 15 9 212 2 64 66
5 15 98 204 4 62 28 5 15 6 212 6 64 76
4 15 95 204 6 62 33 4 15 4 212 10 64 87
3 15 93 204 9 62 41 3 15 1 213 2 64 97
2 15 90 204 11 62 46 2 14 99 213 6 65 8
1 15 88 205 1 62 51 1 14 96 213 10 65 18
0 15 85 205 4 62 59 0 14 94 214 2 65 28
51 11 15 82 205 6 62 64 48 11 14 91 214 6 65 39
10 15 80 205 9 62 71 10 14 88 214 10 65 49
9 15 77 205 11 62 76 9 14 86 215 3 65 60
8 15 75 206 1 62 81 8 14 83 215 7 65 70
7 15 72 206 4 62 89 7 14 81 215 11 65 81
6 15 70 206 6 62 94 6 14 78 216 3 65 91
5 15 67 206 9 63 2 5 14 76 216 7 66 2
4 15 65 206 11 63 7 4 14 73 216 11 66 12
3 15 62 207 1 63 12 3 14 71 217 3 66 23
2 15 60 207 4 63 20 2 14 68 217 8 66 33
1 15 57 207 6 63 25 1 14 66 217 12 66 44
0 15 54 207 9 63 32 0 14 63 218 4 66 55

1 ) Vessels of a beam over 210 ft. and up to 254 ft, 3 inches can transit the Canal in a beam wind not exceeding
10 knots.
2 ) Vessels of a beam over 254 ft, 3 inch may be allowed to transit the Canal with a special request.
