Page 81 - Rules of Navigation2020

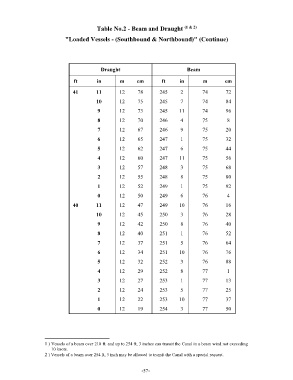

Table No.2 - Beam and Draught (1 & 2)

"Loaded Vessels - (Southbound & Northbound)" (Continue)

Draught Beam

ft in m cm ft in m cm

41 11 12 78 245 2 74 72

10 12 75 245 7 74 84
9 12 73 245 11 74 96
8 12 70 246 4 75 8

7 12 67 246 9 75 20

6 12 65 247 1 75 32
5 12 62 247 6 75 44
4 12 60 247 11 75 56

3 12 57 248 3 75 68
2 12 55 248 8 75 80

1 12 52 249 1 75 92
0 12 50 249 6 76 4

40 11 12 47 249 10 76 16
10 12 45 250 3 76 28

9 12 42 250 8 76 40
8 12 40 251 1 76 52
7 12 37 251 5 76 64

6 12 34 251 10 76 76
5 12 32 252 3 76 88

4 12 29 252 8 77 1
3 12 27 253 1 77 13

2 12 24 253 5 77 25
1 12 22 253 10 77 37

0 12 19 254 3 77 50

1 ) Vessels of a beam over 210 ft. and up to 254 ft, 3 inches can transit the Canal in a beam wind not exceeding
10 knots.
2 ) Vessels of a beam over 254 ft, 3 inch may be allowed to transit the Canal with a special request.

- 57 -
