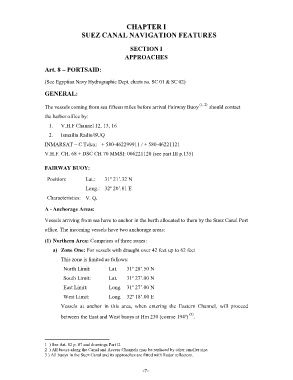

CHAPTER I
                                   SUEZ CANAL NAVIGATION FEATURES


                                                       SECTION I
                                                     APPROACHES

                    Art. 8 – PORTSAID:

                    (See Egyptian Navy Hydrographic Dept. charts no. SC 01 & SC 02)


                    GENERAL:

                                                                                     (1, 2)
                    The vessels coming from sea fifteen miles before arrival Fairway Buoy  should contact
                    the harbor office by:
                     1.   V.H.F Channel 12, 13, 16
                     2.   Ismailia Radio/SUQ

                    INMARSAT – C Telex:   + 580-462299911 / + 580-46221121
                    V.H.F. CH. 68 + DSC CH 70 MMSI: 006221120 (see part III p.135)


                    FAIRWAY BUOY:

                     Position:       Lat.:   31º 21’.32 N
                                     Long.:  32º 20’.81 E

                     Characteristics:  V. Q.

                    A - Anchorage Areas:

                    Vessels arriving from sea have to anchor in the berth allocated to them by the Suez Canal Port
                    office. The incoming vessels have two anchorage areas:

                    (1) Northern Area: Comprises of three zones:
                       a)  Zone One: For vessels with draught over 42 feet up to 62 feet

                          This zone is limited as follows:
                           North Limit:        Lat.   31º 28’.50 N

                           South Limit:        Lat.   31º 27’.00 N
                           East Limit:         Long.  31º 27’.00 N
                           West Limit:         Long.  32º 18’.00 E

                          Vessels  at  anchor  in  this  area,  when  entering  the  Eastern  Channel,  will  proceed
                                                                                 (3)
                          between the East and West buoys at Hm 230 (course 194º) .




                    1  ) See Art. 82 p. 87 and drawings Part II.
                    2  ) All buoys along the Canal and Access Channels may be replaced by other smaller size.
                    3 ) All buoys in the Suez Canal and its approaches are fitted with Radar reflectors.


                                                                 - 7 -
