Page 190 - Rules of Navigation2020

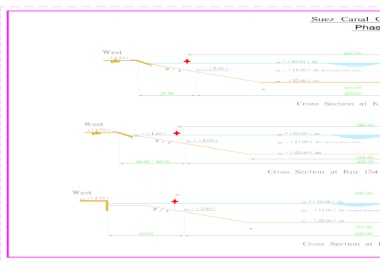

Suez Canal Cross Sections

Phase 66'

DW. NO. (28/28 ) __ Page (139)

West 217.00 East
( 3.70 ) ( 3.70 )
( 00.00 ) m - ( 1.10 )
- ( 9.00 )
3 / 1 3 / 1
- ( 11.00 ) m theoretical reference level
- ( 25.00 ) m
121.00
37.50 205.00 48.90
Cross Section at Km 149.400 - 153.524

West 247.00 East
( 3.70 ) ( 3.70 )
- ( 1.10 ) ( 00.00 ) m - ( 1.10 )
- ( 9.00 )
- ( 11.00 ) m theoretical reference level
3 / 1 3 / 1
- ( 25.00 ) m
151.00
38.30 - 43.50 235.00 48.90

Cross Section at Km 154.724 - 157.550 ( Curve )

West 247.00 East
( 3.70 )
( 00.00 ) m - ( 3.00 )
- ( 9.00 )
- ( 11.00 ) m theoretical reference level casion from Km 158.628 to 160.00
3 / 1 3 / 1
- ( 25.00 ) m
151.00
50.00 235.00 49.82

Cross Section at Km 159.900 ( Curve )
