Suez Canal Cross Sections

Phase 66'

DW. NO. (27/28 ) __ Page (138)

East
West
242.00
( 00.00 ) m
- ( 9.00 )
- ( 11.00 ) m theoretical reference level
3 / 1 3 / 1
- ( 25.00 ) m
146.00
34.98 - 35.37 230.00 62.62

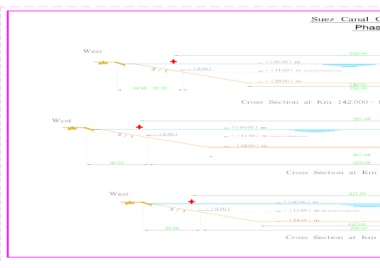

Cross Section at Km 142.000 - 143.000 ( at Tunnel )

East
West 291.08
( 00.00 ) m
- ( 9.00 )
3 / 1 3 / 1
- ( 11.00 ) m theoretical reference level
- ( 24.00 ) m
201.08

40.97 279.08 258.24 m at Km 145.496 47.51
261.19 m at Km 146.329
Cross Section at Km 145.915 ( Siding )

East
West 217.00

( 00.00 ) m
- ( 9.00 )
3 / 1 3 / 1
- ( 11.00 ) m theoretical reference level
- ( 24.00 ) m
127.00
37.50 205.00 48.30
Cross Section at Km 147.146 - 149.400
