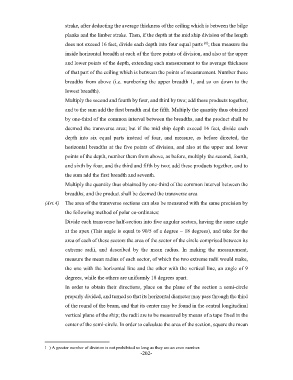

strake, after deducting the average thickness of the ceiling which is between the bilge
                            planks and the limber strake. Then, if the depth at the mid ship division of the length

                                                                                       (1)
                            does not exceed 16 feet, divide each depth into four equal parts ; then measure the
                            inside horizontal breadth at each of the three points of division, and also at the upper

                            and lower points of the depth, extending each measurement to the average thickness
                            of that part of the ceiling which is between the points of measurement. Number these
                            breadths from above  (i.e. numbering the upper breadth 1, and so on down to the

                            lowest breadth).
                            Multiply the second and fourth by four, and third by two; add these products together,

                            and to the sum add the first breadth and the fifth. Multiply the quantity thus obtained
                            by one-third of the common interval between the breadths, and the product shall be

                            deemed the transverse area; but if the mid ship depth exceed 16 feet, divide each
                            depth  into  six  equal  parts  instead  of  four,  and  measure,  as  before  directed,  the

                            horizontal breadths at the five points of division, and also at the upper and lower
                            points of the depth, number them from above, as before, multiply the second, fourth,
                            and sixth by four, and the third and fifth by two; add these products together, and to

                            the sum add the first breadth and seventh.
                            Multiply the quantity thus obtained by one-third of the common interval between the

                            breadths, and the product shall be deemed the transverse area
                    (Art.4)    The area of the transverse sections can also be measured with the same precision by
                            the following method of polar co-ordinates:

                            Divide each transverse half-section into five angular sectors, having the same angle
                            at the apex (This angle is equal to 90/5 of a degree = 18 degrees), and take for the

                            area of each of these sectors the area of the sector of the circle comprised between its
                            extreme  radii,  and  described  by  the  mean  radius.  In  making  the  measurement,

                            measure the mean radius of each sector, of which the two extreme radii would make,
                            the one with the horizontal line and the other with the vertical line, an angle of 9

                            degrees, while the others are uniformly 18 degrees apart.
                            In order to obtain  their  directions, place on  the plane of the section  a semi-circle
                            properly divided, and turned so that its horizontal diameter may pass through the third

                            of the round of the beam, and that its center may be found in the central longitudinal
                            vertical plane of the ship; the radii are to be measured by means of a tape fixed in the

                            center of the semi-circle. In order to calculate the area of the section, square the mean



                    1  ) A greater number of division is not prohibited so long as they are an even number.
