Art. 87 -  Information Displayed on the Signal Station Board:

                    As each vessel passes a signal station, the VTMS system updates the signal station boards to
                    provide  convoy  progress  the  following  information  (Table  6)  for  a  vessel  as  it  passes  the

                    station.
                    Information  of vessels  (as  vessel  name, convoy  position, SC  ID  number.  call sign,  speed,
                    location and meteorological data) will be displayed to the signal station operators on signal

                    station PCs.
                         First Line indicates the convoy direction and the current time.

                         Second  Line  indicates  the  Meteorological,  Emergency  and  the  Navigational
                          information for all the stations scrolled from right to left.

                         Third Line indicates Type and Time of the preceding vessel.

                         Fourth Line indicates Type and Time of the vessel currently passing in front of the
                          signal station.

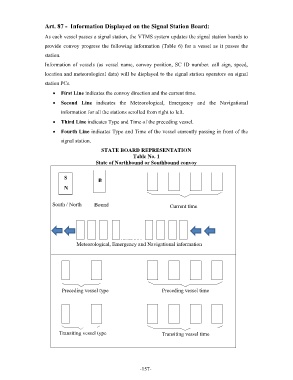

                                           STATE BOARD REPRESENTATION
                                                         Table No. 1
                                         State of Northbound or Southbound convoy


                            S               B
                            N



                       South / North    Bound                                      Current time






                                                           ….......……
                                      Meteorological, Emergency and Navigational information








                              Preceding vessel type                              Preceding vessel time







                            Transiting vessel type                           Transiting vessel time
