Page 178 - Rules of Navigation2020

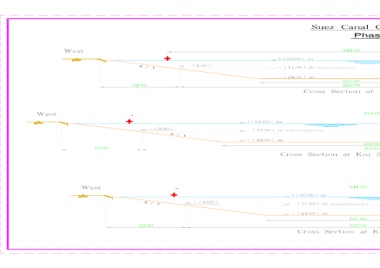

Suez Canal Cross Sections
Phase 66'

West 241.00 East DW. NO. (22/28 ) __ Page (133)
( 2.00 )
( 00.00 ) m - ( 0.60 )
- ( 9.00 ) 32.40
4 / 1 4 / 1
- ( 11.00 ) m theoretical reference level
- ( 24.00 ) m
121.00
52.50 225.00 74.00
Cross Section at Km 19.000 - 30.190

West 318.00 East
( 2.00 )
( 00.00 ) m - ( 0.60 )
- ( 9.00 ) 15.40
- ( 11.00 ) m theoretical reference level 4 / 1
4 / 1
- ( 24.00 ) m
198.00
52.50 302.00 57.00
Cross Section at Km 32.350 - 32.950 ( Siding )

West 241.00 East

( 00.00 ) m - ( 0.60 ) ( 2.00 )
- ( 9.00 ) 20.40
4 / 1 4 / 1
- ( 11.00 ) m theoretical reference level
- ( 24.00 ) m
121.00
52.50 225.00 62.00
Cross Section at Km 35.110 - 49.512
