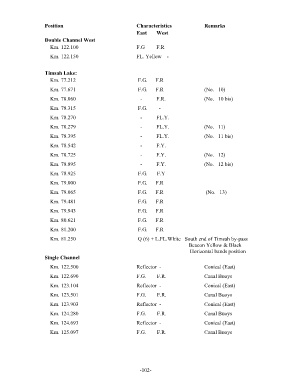

P. 126

Position                              Characteristics             Remarks
                                                          East    West
                    Double Channel West
                      Km. 122.100                         F.G     F.R
                      Km. 122.150                                  FL. Yellow    -

                    Timsah Lake:
                      Km. 77.212                           F.G.      F.R
                      Km. 77.671                           F.G.      F.R              (No.   10)

                      Km. 78.060                            -     F.R.                (No.   10 bis)
                      Km. 78.315                           F.G.    -

                      Km. 78.270                              -   FL.Y.
                      Km. 78.279                              -   FL.Y.               (No.   11)

                      Km. 78.395                               -   FL.Y.              (No.   11 bis)
                      Km. 78.542                                -   F.Y.

                      Km. 78.725                              -   F.Y.                (No.   12)
                      Km. 78.895                                  -   F.Y.            (No.   12 bis)
                      Km. 78.925                           F.G.       F.Y

                      Km. 79.000                           F.G.      F.R
                      Km. 79.065                           F.G.      F.R                     (No.   13)

                      Km. 79.481                           F.G.      F.R
                      Km. 79.943                           F.G.      F.R

                      Km. 80.621                           F.G.      F.R
                      Km. 81.200                           F.G.      F.R
                      Km. 81.250                           Q (6) + L.FL.White   South end of Timsah by-pass
                                                                                       Beacon Yellow & Black
                                                                                      Horizontal bands position
                    Single Channel

                      Km. 122.500                         Reflector  -                Conical (East)
                      Km. 122.690                         F.G.        F.R.            Canal Buoys

                      Km. 123.104                         Reflector  -                Conical (East)
                      Km. 123.501                         F.G.        F.R.            Canal Buoys
                      Km. 123.903                         Reflector  -                Conical (East)

                      Km. 124.280                         F.G.        F.R.            Canal Buoys
                      Km. 124.693                         Reflector  -                Conical (East)

                      Km. 125.097                         F.G.        F.R.            Canal Buoys







                                                           - 102    -
