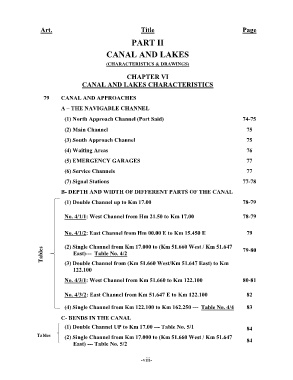

Art. Title Page

PART II

CANAL AND LAKES
(CHARACTERISTICS & DRAWINGS)

CHAPTER VI

CANAL AND LAKES CHARACTERISTICS

79 CANAL AND APPROACHES
A – THE NAVIGABLE CHANNEL

(1) North Approach Channel (Port Said) 74-75

(2) Main Channel 75

(3) South Approach Channel 75
(4) Waiting Areas 76

(5) EMERGENCY GARAGES 77

(6) Service Channels 77
(7) Signal Stations 77-78

B- DEPTH AND WIDTH OF DIFFERENT PARTS OF THE CANAL

(1) Double Channel up to Km 17.00 78-79

No. 4/1/1: West Channel from Hm 21.50 to Km 17.00 78-79

No. 4/1/2: East Channel from Hm 00.00 E to Km 15.450 E 79

Tables (2) Single Channel from Km 17.000 to (Km 51.660 West / Km 51.647 79-80
East)--- Table No. 4/2

(3) Double Channel from (Km 51.660 West/Km 51.647 East) to Km
122.100
No. 4/3/1: West Channel from Km 51.660 to Km 122.100 80-81

No. 4/3/2: East Channel from Km 51.647 E to Km 122.100 82

(4) Single Channel from Km 122.100 to Km 162.250 --- Table No. 4/4 83

C- BENDS IN THE CANAL
(1) Double Channel UP to Km 17.00 --- Table No. 5/1 84

Tables (2) Single Channel from Km 17.000 to (Km 51.660 West / Km 51.647
East) --- Table No. 5/2 84

-viii-
